- IK10 rated for ultimate impact resistance
- Pan/tilt camera functionality to capture an angled view
- Reads EM, Paxton & MIFARE® token technology
- Built-in keypad and RFID reader
- Comes in flush, surface mount, or rain hood versions
- IP & PoE technology for easy expansion

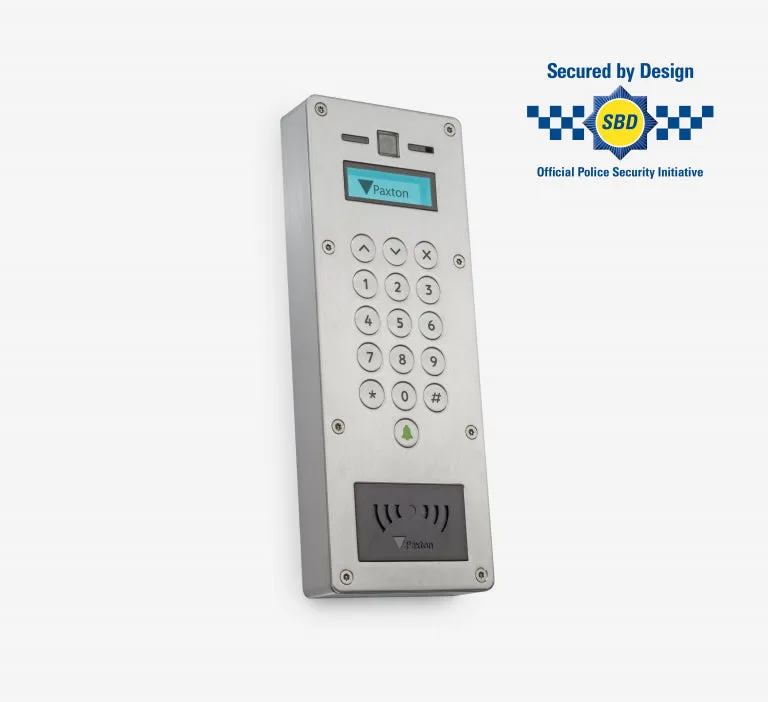

About – Entry is a door entry system that works standalone or alongside Paxton’s Net2 access control or Paxton10, access control, and video management, combining door entry with key features of our access control software. An external panel component of the Entry system. This panel option can open opportunities at sites where vandal-resistant capabilities are a prerequisite. With a market-leading IK10 impact rating, the VR panel is made from marine-grade stainless steel to meet the most demanding environments.
All Entry panels are IPX5 rated, making them suitable for external use in all weather conditions.
Installation – Entry components simply interconnect using Cat5 or standard RJ45 terminated patch cables. Entry can also utilize existing network infrastructure for simple installation. PoE technology runs power and data along the same cable to avoid the need for separate power supplies.
The surface mount version of this panel enables installation of the unit directly on the surface of the wall so that it is protruding and 100% exposed. For multiple panel entrances, more than one panel can be associated with an ACU.
A secondary IP camera can also be installed and integrated with the Entry system to allow extra security in areas of restricted visibility. This provides flexibility with the option to switch between the two cameras on the Entry Monitor.
Operation – A visitor initiates a video call via the bell button on the external panel. Visitor access can be granted via the Entry monitor, which features an intuitive touchscreen user interface. The internal monitor can be used via either the handset for private calls or in hands-free mode.
When connected to Net2 or Paxton10, access to the building can be gained by using a PIN, Code, and/or proximity token (including MIFARE® and Paxton tokens). Paxton10 also offers free Bluetooth Smart Credentials for use with Entry panels. Entry v2.22 is required.
