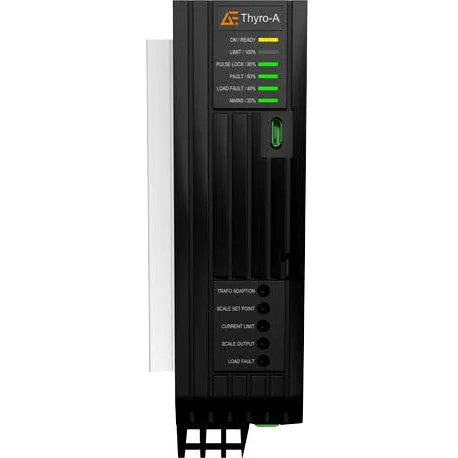

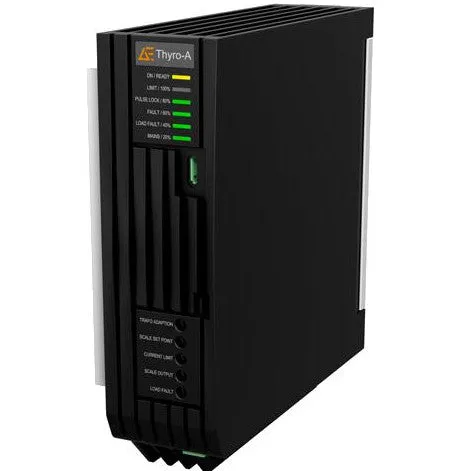

Name: Thyro A 1A Series Single Phase SCR Controller 16 - 1500Amp 500VAC Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes
SKU: 550209

Thyro A 1A Series Single Phase SCR Controller 16 - 1500Amp 500VAC Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes

$ 62.99

$ 81.89

Save: $

Current Rating 45 Deg C:

16 Amp
30 Amp
45 Amp
60 Amp
100 Amp

Load Monitoring/Control:

U
H3 - U
P
I
HRL3 - U
HRLP3 - U

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Advanced Energy Thyro A 1A Series Single Phase SCR Power Controller, Phase(VAR), Burst(TAKT), Quick TAKT(QTM), SWITCH Operating Modes. Compatible Replacement for Erutotherm

Features

Optional Profinet,Profibus,Ethernet,Modbus Comms
500VAC 10/-57% Voltage, Current or Power Control
Built in Fuse
Smallest footprint on the market
Single Phase Phase Angle & Burst Controller with SWITCH operation mode
SWITCH between Phase(VAR) or Burst(TAKT) control modes
Quick TAKT Mode (QTM), VT Mode (on request)
(0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control
Removable Cover
Potentiometer Adjustment
USB Configuration/Bias Setting
Synchronisation Function (dASM Module Recommended)

Applications

Electrical Ovens, Kilns, or Furnaces
Primary Control of Transformer Loads in Phase or Burst Fire mode
AC Soft Starter (Combined with PLC)
Power Regulation Applications
Electric Boilers
Brewery Heating
Industrial Light Dimming
Suitable for extreme environments such as mining

Series Optional Features

For HRL

Current Control/Feedback
Programmable Relay Alarm Output
Load Monitoring
Analogue Output

For HRLP

As above with Power Control Feedback

Communication Options

Specification

Advanced Energy Part Number	Thyro A 1A 500VAC
Approvals	CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC
Control Accuracy	3% at rated voltage
Rated Operating Temperature	45°C
Temperature Derating	0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C
SCR Configuration	Single Phase AC Switch
Control Modes	Phase(VAR), Burst(TAKT), QUick TAKT(QTM), Hybrid(VT on request)
Control Input	4(0)-20mA, 0(1)-5V, 0(2)-10V, POT
Load Current	16 to 1500 Amp @ 45 Deg C (110% @ 35 Deg C Max)
Control Range	0-100%
Options	Conformal Coating for Gas or High Humidity Environments
Mounting Style	Panel Mount
Supply Voltage Range	500VAC 10/-15% (-57% with 24VDC Aux Supply)
Soft Start	Via PLC input
Termination Style	Screw
Unit Weight	2.1 to 30kg
Factory Pack Qty	1
